Yes! OMM Racks work perfectly with UDH and SRAM Transmission!

Our two-piece axle design mounts perfectly through SRAM Universal Derailleur Hangers and Transmission derailleurs. There is no modification needed.

What is the SRAM Universal Derailleur Hanger?

SRAM’s Universal Derailleur Hanger, or UDH was introduced in 2019 to standardize derailleur hangers. Bike frames that are compatible with UDH are also compatible with SRAM’s direct mount derailleur design, Transmission, and vice versa.

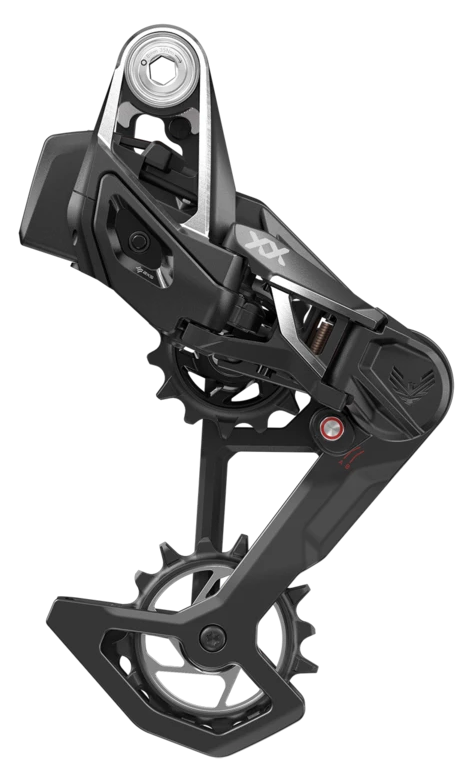

SRAM Universal Derailleur Hanger

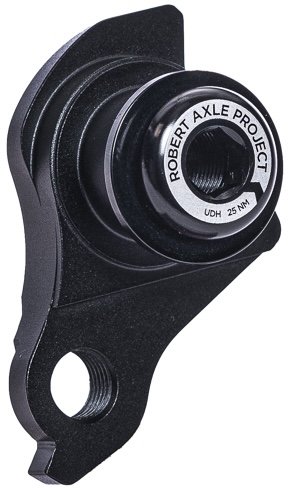

SRAM Universal Derailleur Hanger

How do I know if my frame is UDH-compatible?

UDH attaches to the drive-side dropout of the frame using a bolt with a 20mm head, called the “UDH Bolt”.

This bolt may have information etched on it that will help you identify if it is part of a UDH hanger.

If you are unsure, most manufacturers will mention if a bike is UDH compatible under the component specifications for your bike.

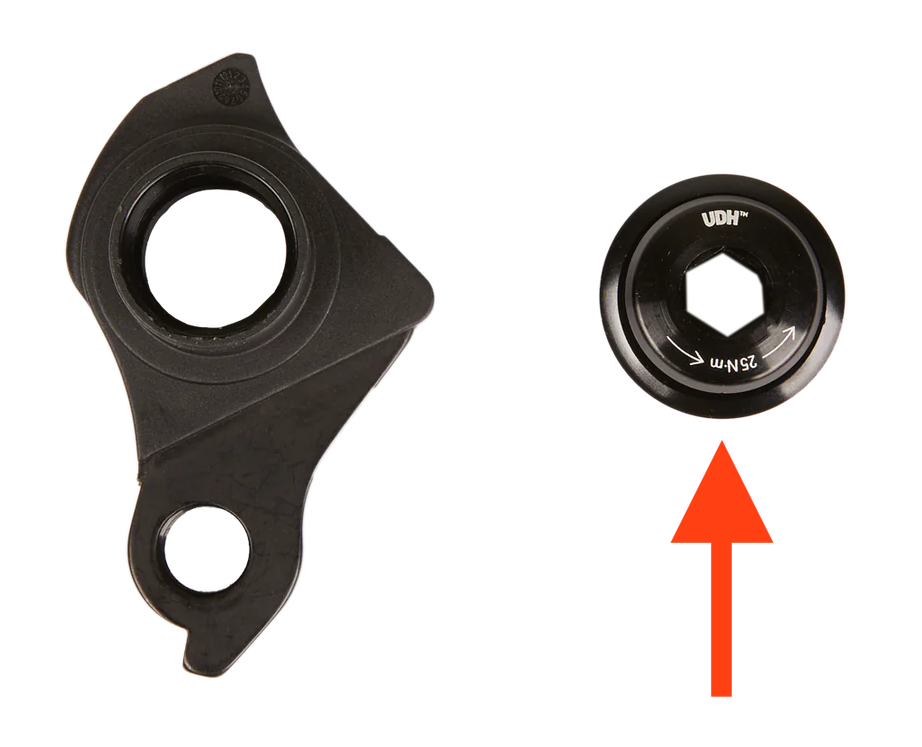

Image of UDH with the fixing bolt called out

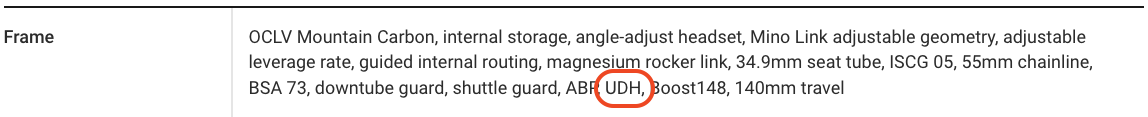

Example of where the UDH attribute is called out in a bike's specifications



Any bike that comes equipped with Transmission is also UDH-compatible. Please reach out to the manufacturer of your bike if you need help finding this information.

Why is this important when choosing an axle?

Bike companies have widely adopted the UDH standard on their frames. Often, the introduction of UDH on a frame will change in the axle’s length and/or thread pitch. This change does not always coincide with the change of a model year or the release of a new model, so for some bikes, our Axle Finder will ask you if your bike has UDH or not.

For example:

The Esker Hayduke is available with both non-UDH and UDH compatible dropouts.

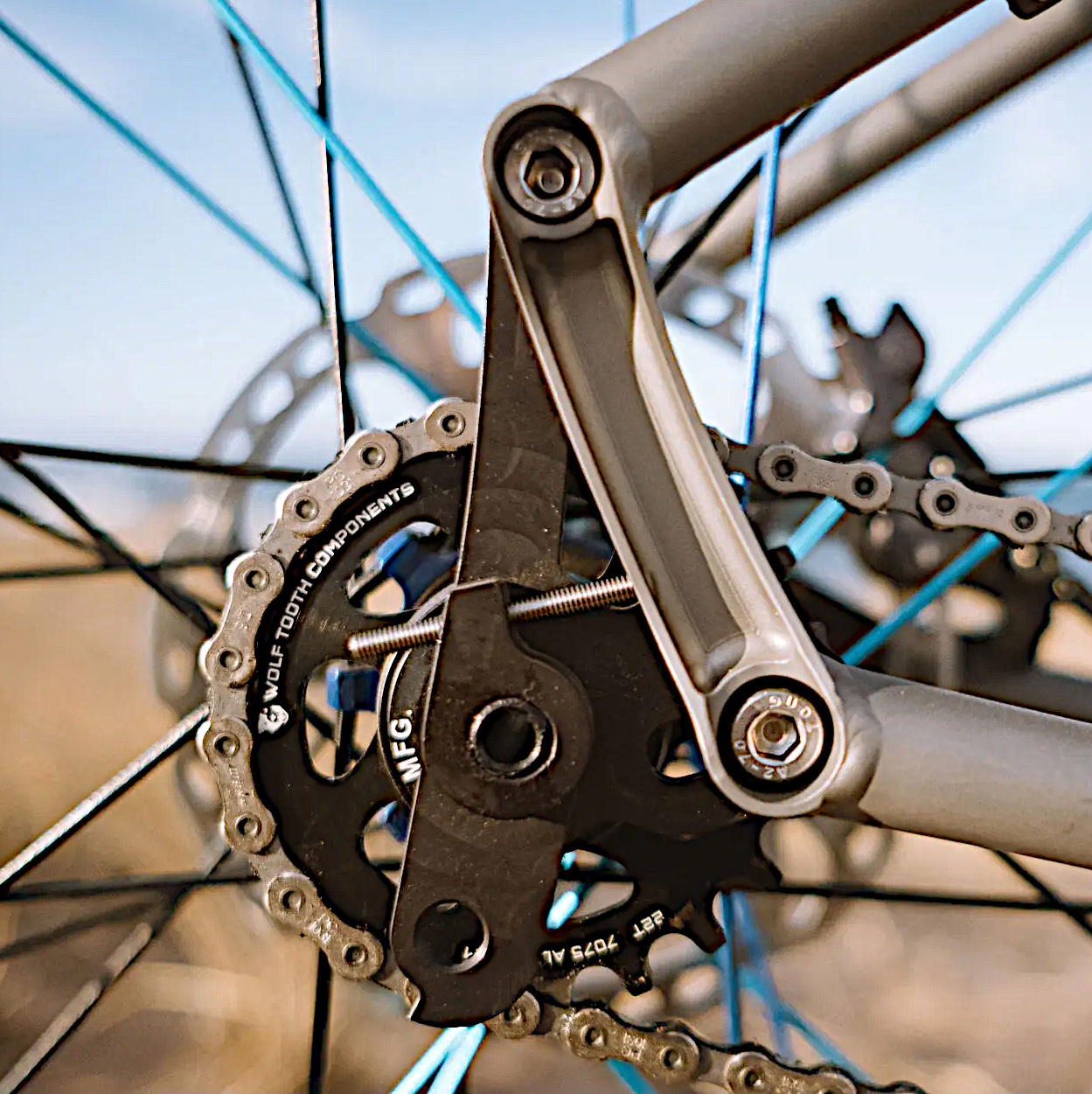

Esker non-UDH Portage dropout

Esker Hayduke with non-UDH dropout

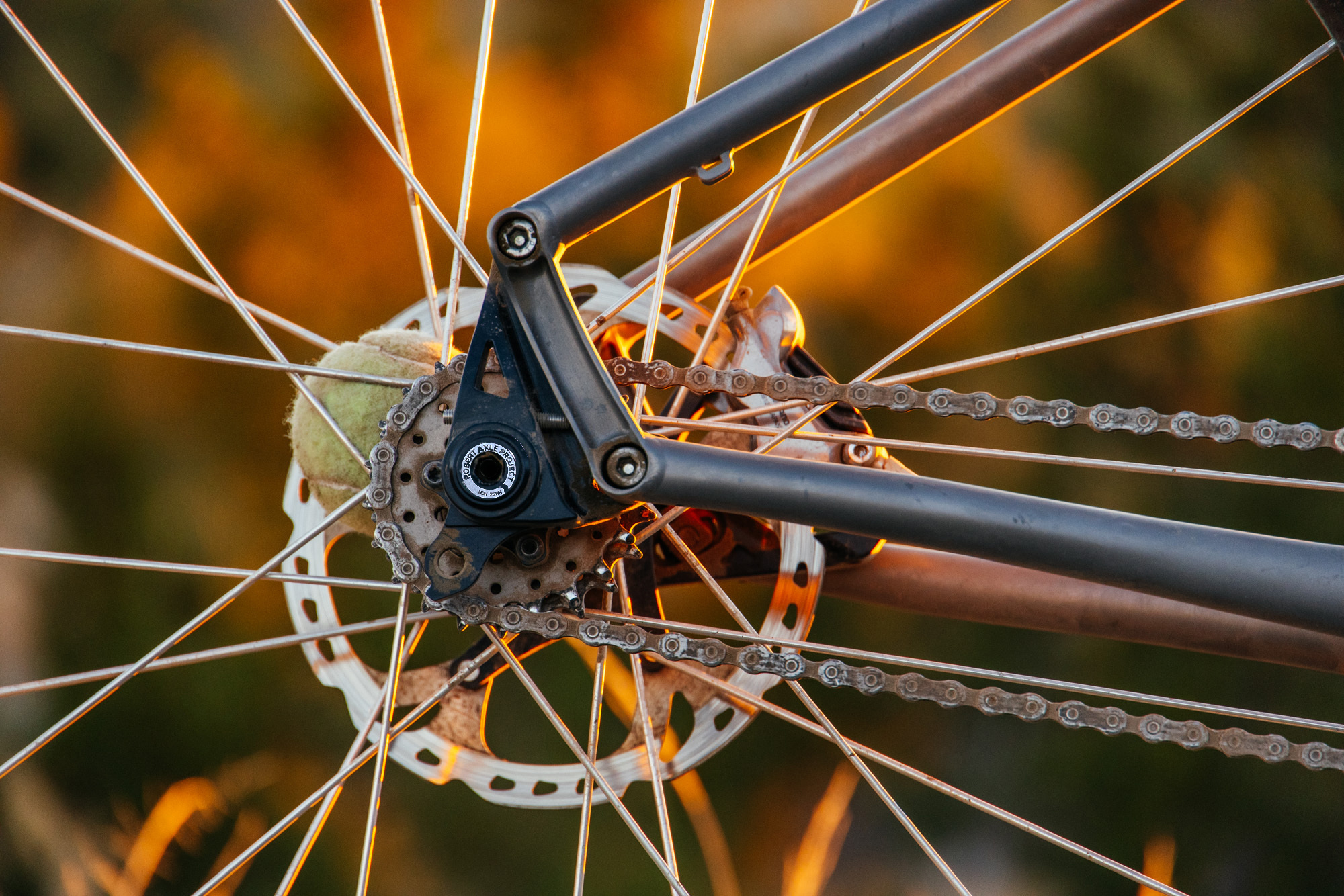

Hayduke-with-udh

Esker Hayduke with UDH dropout

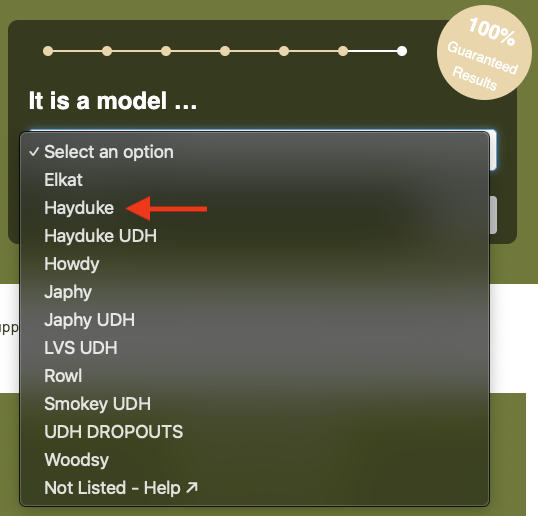

These frames use different lengths and thread pitches of axle. We call out the non-UDH Hayduke as “Hayduke” in the Fit Kit Finder:

Hayduke without UDH

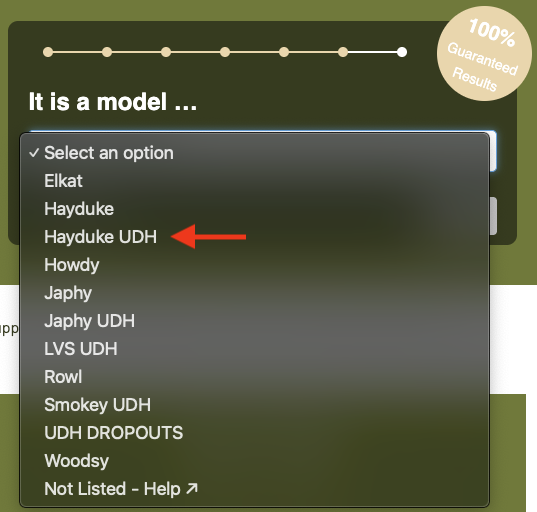

whereas the UDH-compatible Hayduke is called out as “Hayduke UDH”:

Hayduke with UDH

When you are working with our Axle Finder, please be sure to review all available options to ensure you are selecting the correct axle for your bike.

Will UDH get in the way of Fit Kit axles?

Fit Kit axles are the best way to attach a rack to your UDH-equipped frame. Our drive side axle end fits through the 8mm broach of the fixing bolt and threads into the shaft of the Fit Kit axle.

You do not have to modify or adjust your derailleur or shifter in any way to use an Old Man Mountain Fit Kit thru-axle. Our Fit Kit thru-axles preserve the quality of your shifting while attaching our racks to one of the strongest points on your bike.

We make sure to account for the extra width that UDH and Transmission add to a frame when recommending our axles. Just enter your bike information in our Fit Kit Finder and you are good to go!

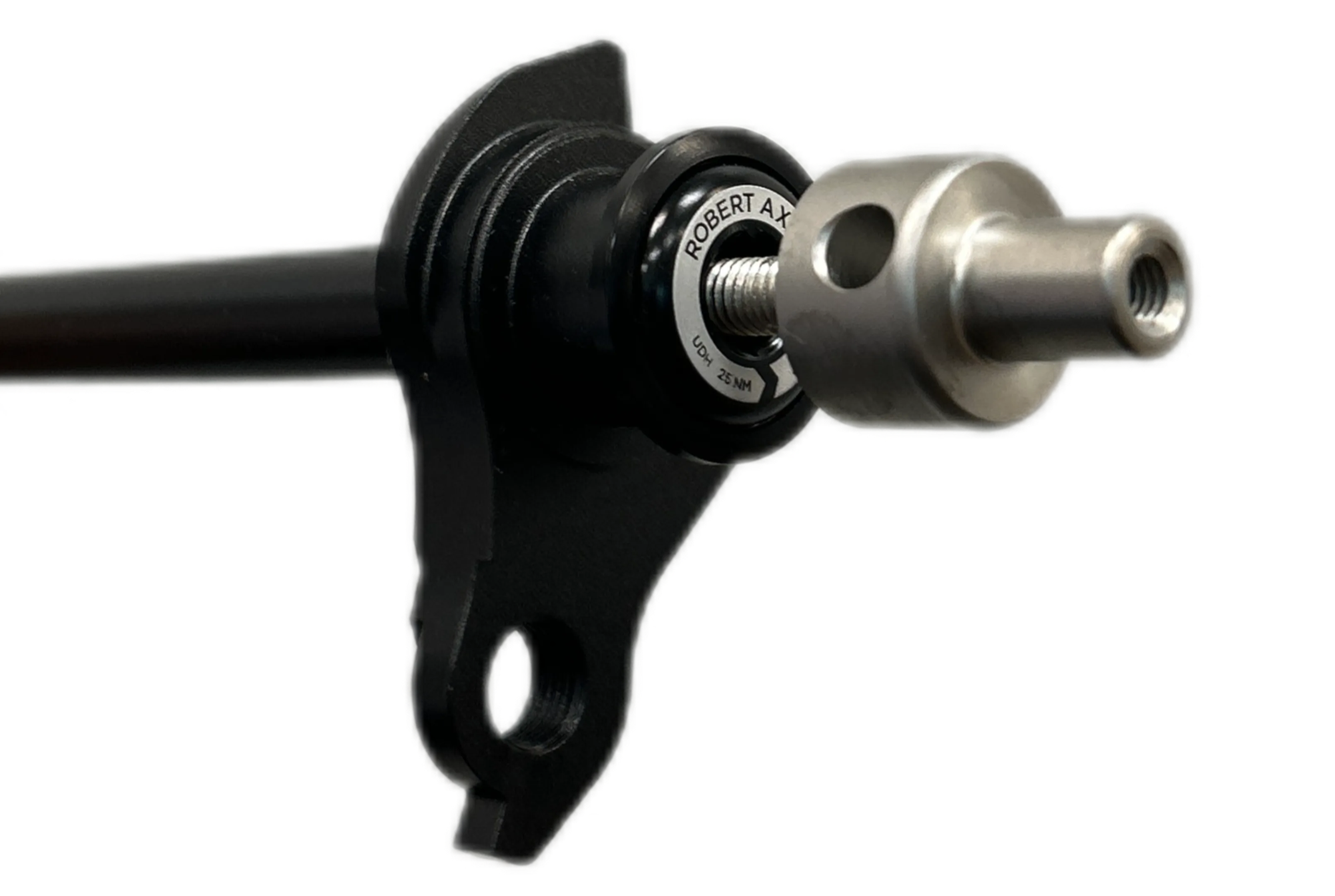

UDH with Fit Kit Axle

UDH with Fit Kit thru-axle

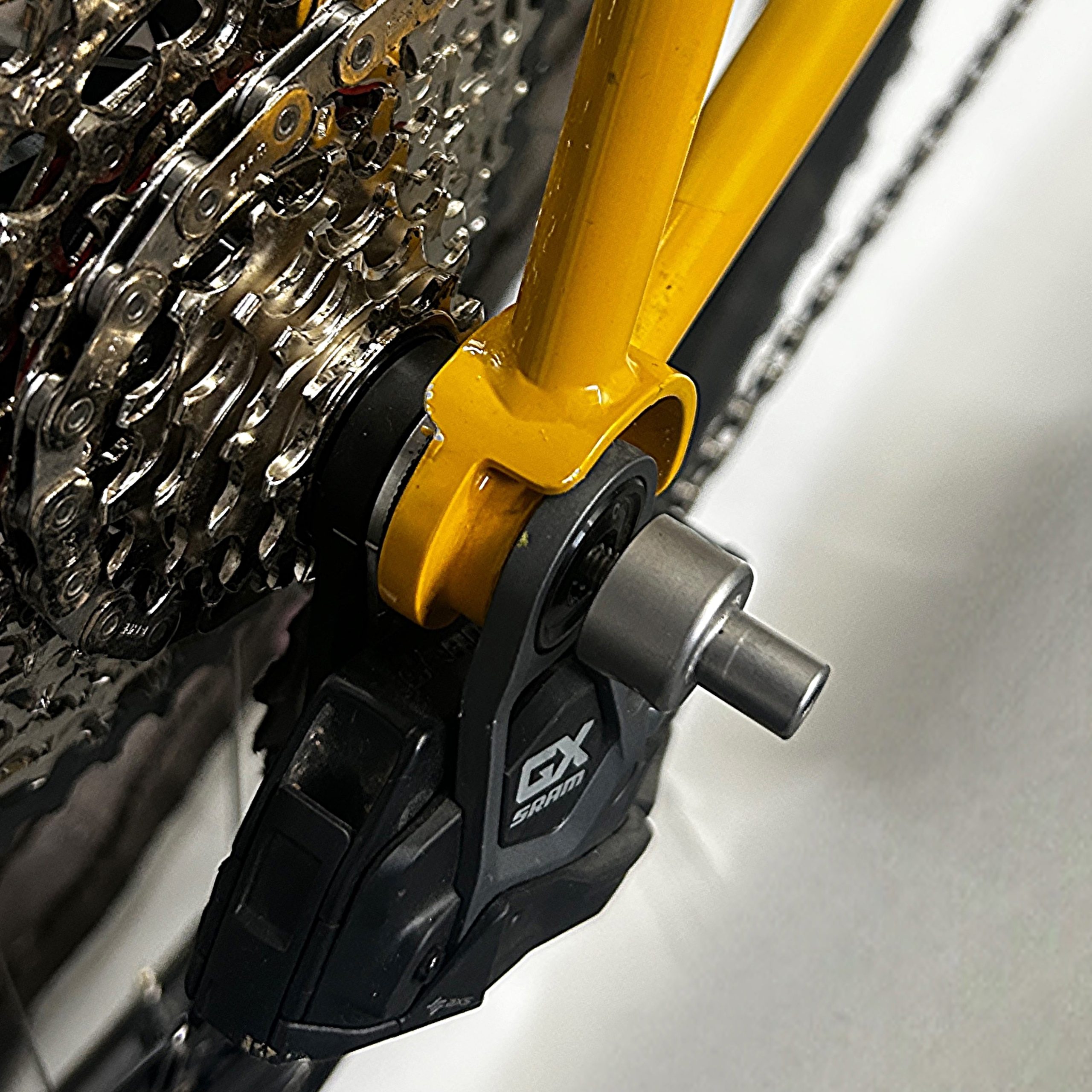

Transmission derailleur with Fit Kit thru-axle

Transmission Derailleur with Fit Kit thru-axle

Tips & Tricks

  • UDH and Transmission dropouts are designed to accept axles with M12 x 1.0 thread.
  • A great upgrade for any UDH compatible bike is the Robert Axle Project Universal Derailleur Hanger. Installing this all-metal precision machined hanger in conjunction with our high quality axles is a great way to firm up the rear axle interface of your bike – this often improves shifting accuracy and braking performance over the stock axle/hanger!
  • If all else fails, please reach out to us via email or our Contact Us form. We are here to help you!
