FLIP CAGE INSTALL INSTRUCTIONS

FLIP Cages are built to carry up to 9.9lbs (4.5kg) of weight on each cage, but many fork eyelets are NOT capable of carrying that much weight! Check your frame manufacturer’s weight limit and adhere to the lowest rating. Alternatively you can mount FLIP Cages to our Axle Pack or Elkhorn rack to utilize the full weight capacity.

TOOLS NEEDED:

• • • 3mm hex
    • 4mm hex
    • Torque wrench

Don’t forget to apply anti-seize (preferred) or grease to all bolts. This will prevent the bolts from, you guessed it, seizing and making it hard to remove the bolts down the road.

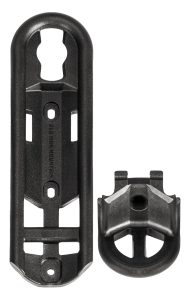

• FLIP Cages come with an optional cargo foot. If you are only using FLIP Cages with a FLIP compatible bag the foot is optional.
• Install FLIP Cages using 3 bolts torqued to 3nm.
  • If your bike only has 2 eyelets you will need to use a rack or 3-pack adapter like our Axle Pack or Elkhorn.

NOTE: Some forks have eyelets with recessed threads. Be sure that the bolts thread in for a minimum of three full turns of engagement.

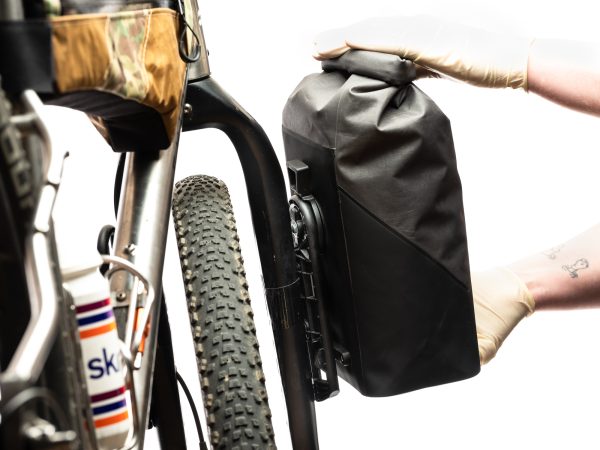

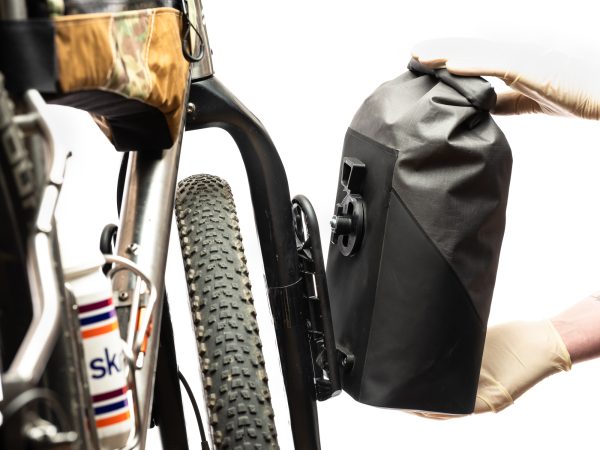

• Tilt the bag and engage the lower hooks as shown in the image below. Make sure both hooks are fulling engaged in the cage.

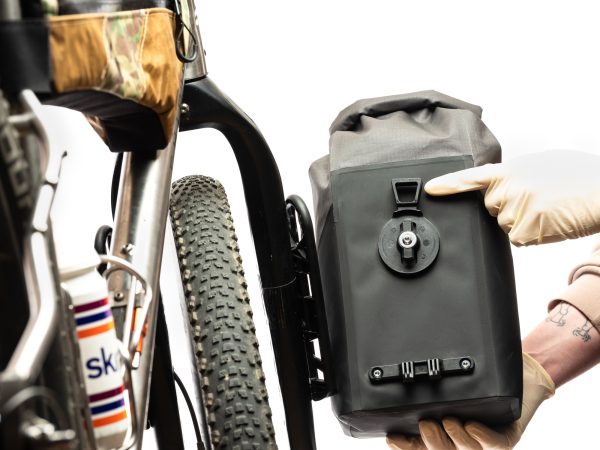

• Tip the bag up with the Latch Handle in the vertical position.

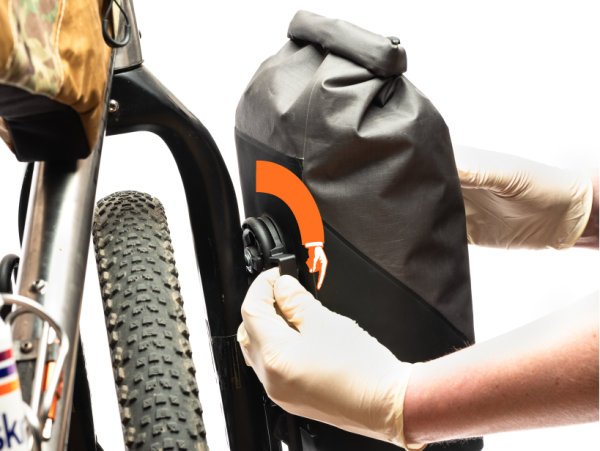

• Rotate the handle 90 degrees to reach the locked position. The handle is designed to be rotated either direction for ease of use.
• Check to ensure the bag clears the wheels spokes, or brakes by a minimum of 2″.

The image above shows the bags too close to the tire.

The image above shows the bags mounted with plenty of clearance.

Check that all hardware is torqued to 3nm.

Always double check all hardware and parts before each ride!

Is your bike an independent thinker, unwilling to conform to bike industry norms? No problem! Our racks are incredibly adaptable and we have lots of tricks up our sleeve for strange bike fits.

For any fitment issues email us via [email protected]. We almost certainly have a solution to fit your bike and are quick to reply.
